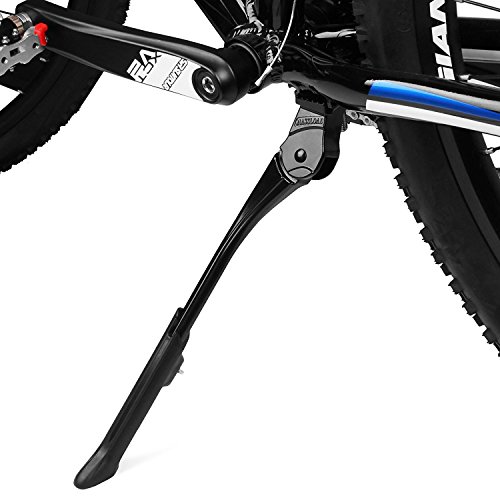

Adjustable Kickstand W/ Concealed Spring Loaded Latch

Hassle-free/ Toolless Design

Our newest design of adjustable latch allows you to adjust the height without any tools.

Just simply pull the latch up, adjust the desired height and release the latch.

No more hassle.

Installation Measurements

Please make sure there is enough space to install the center kickstand before purchasing. The center kickstand might hit the pedal if the space is not enough.

Parts

– Kickstand x 1.

– Long bolt x 1.

– Short bolt x 1 .

– Metal bracket x 1.

– Washer x 1.

( 8MM Allen Key and wrench are required for installation, NOT INCLUDED)

Two ways of installation

a. Locate your chain stays as shown in the photo.

b. Check if you have mounting plate(flat plate with hole for screws) between your chain stay. If you do, go to the 1st right image. If you don’t, go to the 2nd right image.

Bicycle with mounting plate (Use short bolt)

1. Remove the screws, washer and metal bracket off the top of the kickstand.

2. Place the kickstand underneath the plate, adjust height by pushing lever. (To further lock into place. using Allen key to tighten the flat bolt underneath the latch.)

3. Place the bolt in hole to match with the kickstand and tighten by an Allen key or wrench.

Bicycle without mounting plate (Use long bolt)

1. Remove screws, washer and metal bracket.

2. Place the kickstand between the chain stays.

3. Place the metal bracket on top of the chain stays.

4. Tighten the kickstand by tighten the bolt and washer with a wrench.
